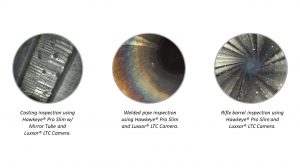

Borescope Images

Luxxor® LTC Borescope Camera

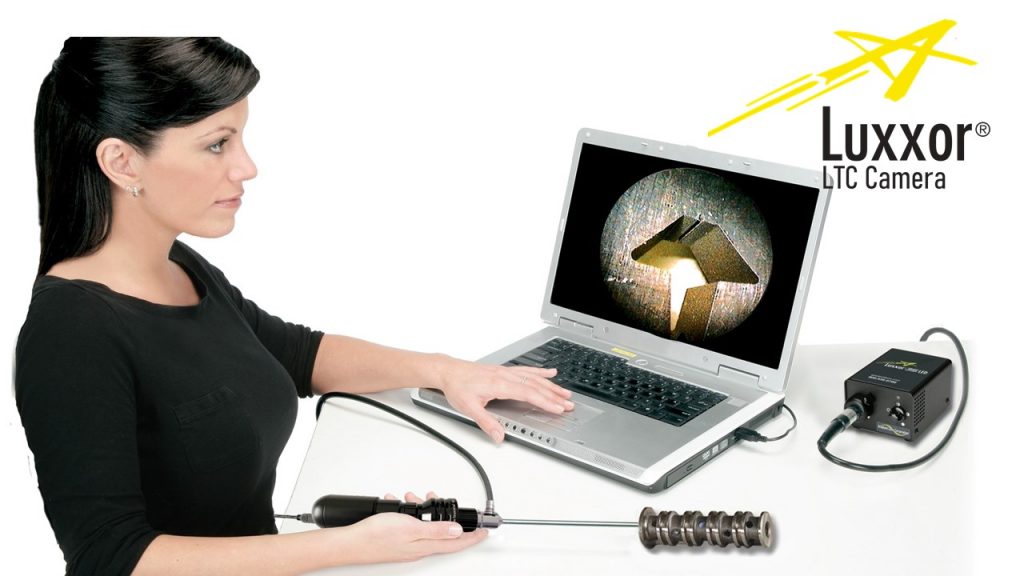

The New Luxxor LTC Borescope Camera attaches to any Hawkeye® Rigid or Flexible Borescope, transforming it into a portable or benchtop video scope.  The New LTC borescope video Camera provides HD image quality at an economical price.  The borescope camera offers both USB3 and HDMI outputs. We offer several video system options to meet your application needs.

Specifications

Model Numbers & Prices

Buy Now

Luxxor® LTC Borescope Camera

Product Model# Price
Video Kits (Borescope sold separately)
Luxxor® LTC Camera, VC-25, HDMI/USB Cables, and Power Supply LTC-VC $1,195 Buy Now
Luxxor® LTC Camera, VC-25, HDMI/USB Cables, Power Supply, and Carrying Case LTC-KIT $1,495 Buy Now
Luxxor® LTC Camera, VC-25, HDMI/USB Cables, Power Supply, SuperNOVA-LED and Carrying Case LTC-NVK $1,695 Buy Now
Luxxor® LTC Camera, VC-25, HDMI/USB Cables, Power Supply, LXX35-LED, LXXLG, and Carrying Case LTC-VBSM $2,795 Buy Now
Hawkeye Video Slides
Horizontal - 24" HVSLIDE-24H-2 $995 Buy Now
Viewing Options
17” HD Industrial Monitor HVM-17-LTC $995 Buy Now
Hawkeye Video Slides
Horizontal - 48" HVSLIDE-48H-2 $1,445 Buy Now
Extra V-Block for Video Slide HV-VBSTAGE-XY-2 $395 Buy Now
Components Sold Separately
Luxxor® LTC Camera, HDMI/USB Cables, and Power Supply LTC $845 Buy Now
HDMI Cable for Luxxor® LTC Camera LTC-HDMICABLE $30 Buy Now
USB Cable for Luxxor® LTC Camera LTC-USBCABLE $10 Buy Now

Download Pricing Table



Borescope CameraLuxxor® LTC Borescope Camera

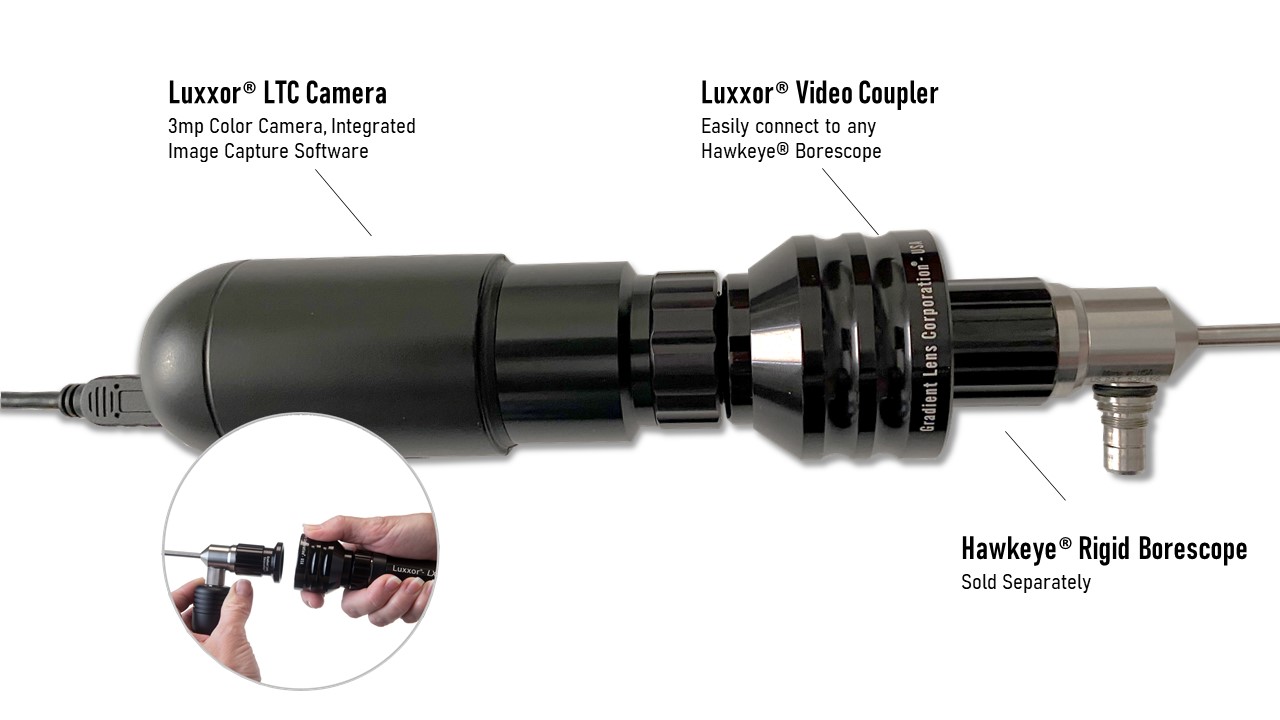

The New Luxxor LTC Borescope Camera attaches to any Hawkeye® Rigid or Flexible Borescope, transforming it into a complete Video Borescope System.  The New LTC HD borescope camera with 3MP CMOS sensor and provides crystal clear images.  The borescope camera offers both USB3 and HDMI outputs, and seamlessly connects to your laptop or PC using the Windows Camera App allowing users to easily capture still images and videos. The LTC borescope camera is tailored for video slide benchtop applications with our 4.2mm and larger rigid borescopes.

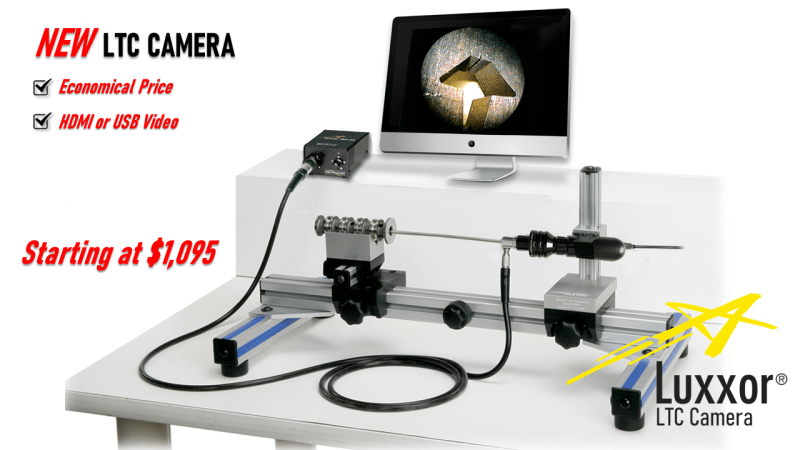

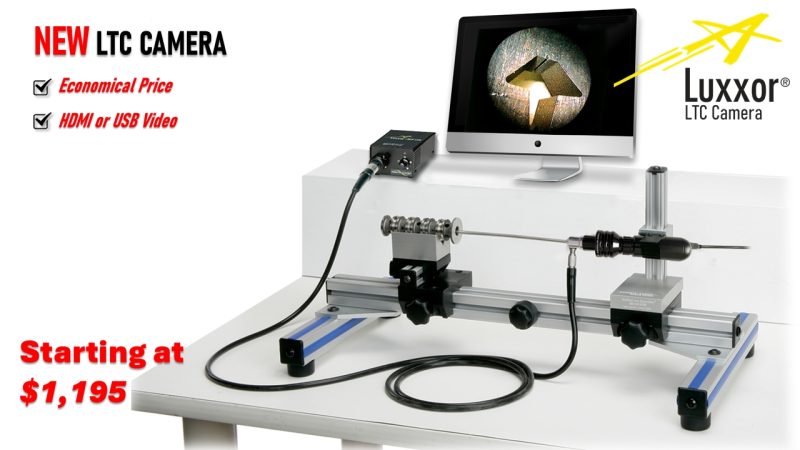

Optional components like the Hawkeye® Video Slide limit the variables with repetitive inspections while making them easier, faster, more efficient and much more comfortable for the user.



Luxxor® Video System Specifications

LTC-Camera:
Image Sensor 1/3.2” 3MP Color CMOS
Effective Pixels 2304 x 1536 pixels
Frame Rate HDMI: 1080i 60fps
USB: 720p 30fps
Video Out USB 3.0 and HDMI
Lens Mount C-Mount
AGC Auto with adjustment
Operating Temp 4 to 49 deg C (40 to 120 F)
Storage Temp -30 to +60 deg C (-22 to +140F)
Dimensions Call for information

Download Specifications



The LTC camera has the Video ToolBox Pro software integrated. Video ToolBox pro includes the following features:

  • Image and Video Capture
  • Digital Zoom
  • Crosshair/Grid Overlay
  • Image Labeling

Download Software
