| Diameter | Length | DOV | FOV | Pixels | Sheath | Model# | Price | |
|---|---|---|---|---|---|---|---|---|
| 0.020" (0.5 mm) | 23.5" (600 mm) | 0° | 55° | 3,000 | Plastic | HSF 005 0600 55 | $4,995 | Buy Now |
| 0.035" (0.9 mm) | 39.4" (1000 mm) | 0° | 55° | 10,000 | Plastic | HSF 009 1000 55 | $4,995 | Buy Now |
| 0.059" (1.5 mm) | 31.5" (800 mm) | 0° | 70° | 30,000 | Plastic | HSF 015 0800 70 | $4,995 | Buy Now |

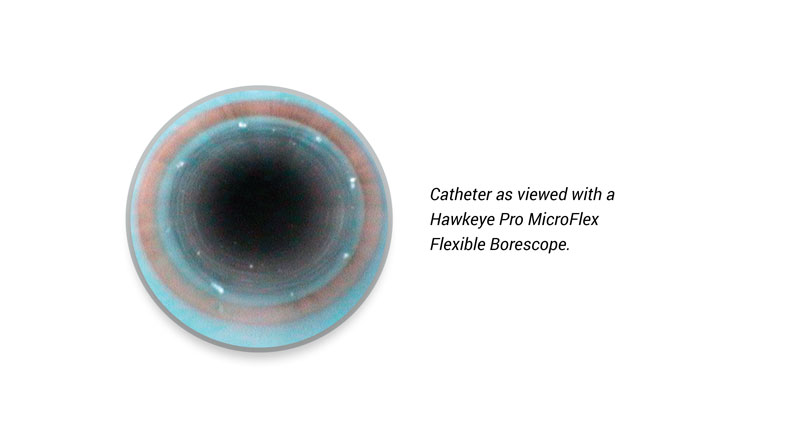

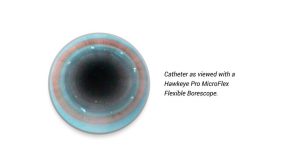

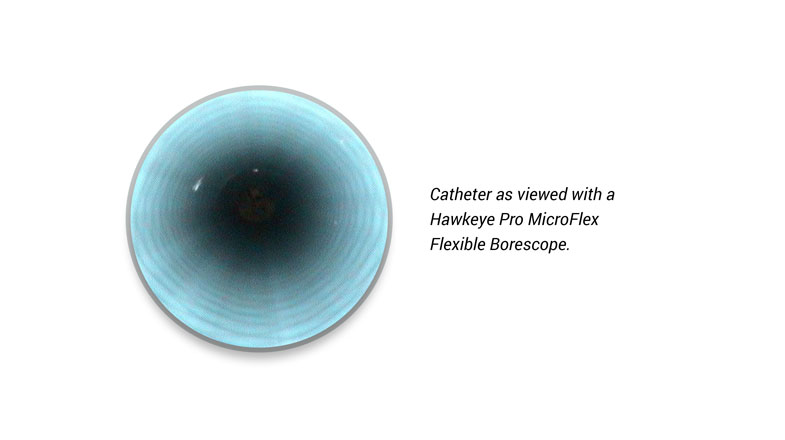

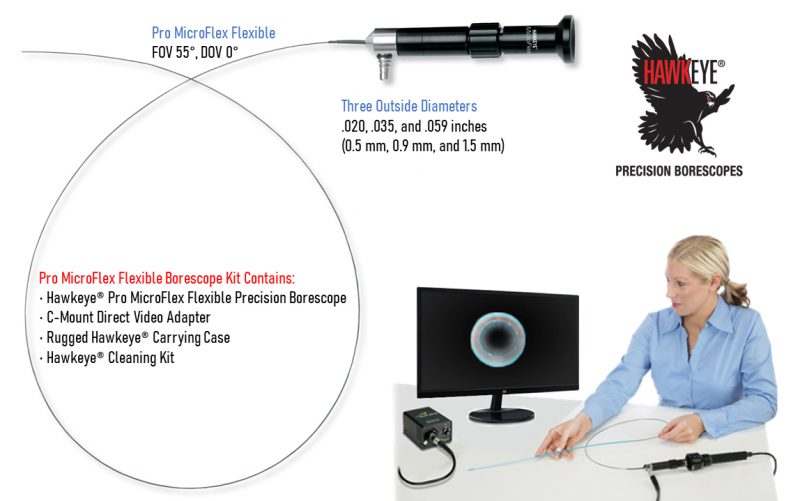

The excellent image quality Hawkeye® MicroFlex Flexible Borescopes deliver, in these very small micro diameters, is nothing short of amazing! You can access even the smallest opening, and utilize a 9-inch bend radius when the entry path is not straight. The polyamide-sheathed 0.5 model has a 3,000 pixel fiber imaging bundle, and the 0.9 mm model has a 10,000 pixel fiber imaging bundle. The plastic-sheathed 1.5 mm has a 30,000 fiber bundle. The eyepiece is easily replaced with a video adapter to use a C-Mount camera. Quickly and easily inspect cooling holes inside turbine blades, cannulas, catheters, needles, trocars, valves in medical devices, and many other micro manufactured parts.
| Optics | |
|---|---|
| Direction-of-View | 0º for all models |
| Pixels | 0.5mm: 3,000 pixels 0.9mm: 10,000 pixels 1.5mm: 30,000 pixels |
| Field-of-View | 0.5mm scope: 55 FOV 0.9mm scope: 55 FOV 1.5mm scope: 70 FOV |
| Depth-of-Field | 0.5mm scope: 1-3 mm 0.9 mm scope: 2 –5 mm , 1mm for the 90 deg. scope 1.5 mm scope: 3 – 10 mm |
| Distal Focus | Fixed focus lens set |
| Mechanical | |
| Tube Diameter | 0.5mm, 0.9mm, 1.5mm |
| Working Length | 0.5mm scope: 600 mm 0.9mm scope: 1000 mm 1.5mm scope: 800 mm |
| Insertion Tube Bend Radius | 0.5mm scope: 1.5” 0.9mm scope: 2.5” 1.5mm scope: 3.5” |
| Articulation | None |
| Tube Construction | Black Polymide |
| Environmental | |
| Operating Temperature | 0º to 170º F (-18º to 77º C) |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth |
| Note 1 | The handpiece is splash proof only. |
