Pro Flexible Borescopes

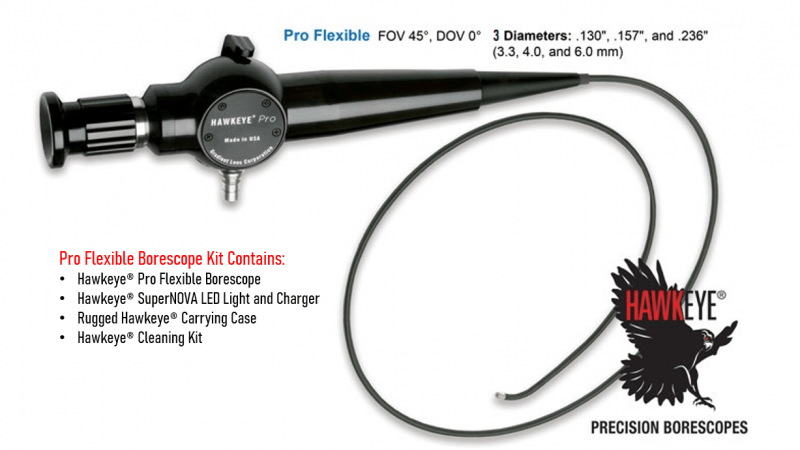

Hawkeye Pro Flexible (3.3 – 6.0 mm dia.)

4 Diameters:.130″, .157″, and .236″
(3.3, 4.0 and 6.0 mm)

Hawkeyes® Pro Flexible Borescopes incorporate an 18,000 fiber, acid-leached imaging bundle, delivering truly excellent image resolution, sharpness, detail, and contrast.

Specifications

Model Numbers & Prices

Add Video

Buy Now

Pro Flexible Borescopes

Product Diameter Length Articulation DOV FOV Fibers Sheath Model# Price

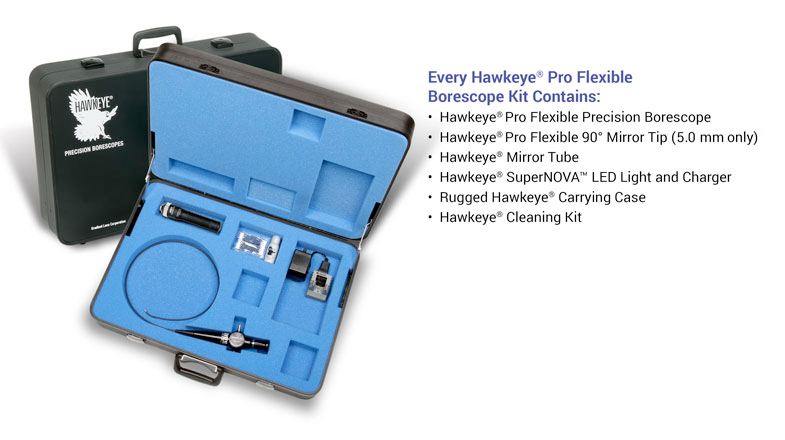

Borescope Kits
Pro Flexible 3mm Kit 0.130” (3.3 mm) 33.5” (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB3-NVK $6,695 Buy Now
Pro Flexible 4mm Kit 0.157” (4 mm) 33.5” (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB4-NVK $6,695 Buy Now
Pro Flexible 4mm Kit w/ tip capability 0.157” (4.0 mm) 33.5” (0.85 m) 2-way 0°, 90° with optional tip 45° 18,000 Tungsten PFB4-A1-NVK $6,845 Buy Now
Pro Flexible 6mm X 4 Kit 0.236” (6 mm) 33.5” (0.85 m) 4-way 0º 45º 18,000 Tungsten PFB6-4-NVK $7,195 Buy Now
Borescopes
Pro Flexible 3mm Borescope 0.130” (3.3 mm) 33.5” (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB3 $6,295 Buy Now
Pro Flexible 4mm Borescope 0.157” (4 mm) 33.5” (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB4 $6,295 Buy Now
Pro Flexible 4mm Borsecope w/ tip capability 0.157” (4 mm) 33.5” (0.85 m) 2-way 0°, 90° with optional tip 45° 18,000 Tungsten PFB4-A1 $6,445 Buy Now
Pro Flexible 6mm X 4 Borescope 0.236” (6 mm) 33.5” (0.85 m) 4-way 0° 45° 18,000 Tungsten PFB6-4 $6,795 Buy Now
Prism Tips
6mm, 90° Prism Tip (not in kits) FTP-6-90 $995 Buy Now
4mm, 90° Prism Tip (not in kits) V2-PTIP-4-90 $1,250 Buy Now

Download Pricing Table

Hawkeye® Pro Flexible Borescopes incorporate an 18,000 fiber, acid-leached imaging bundle, delivering truly excellent image resolution, sharpness, detail, and contrast. Lower cost alternatives do not deliver image quality nearly this high.

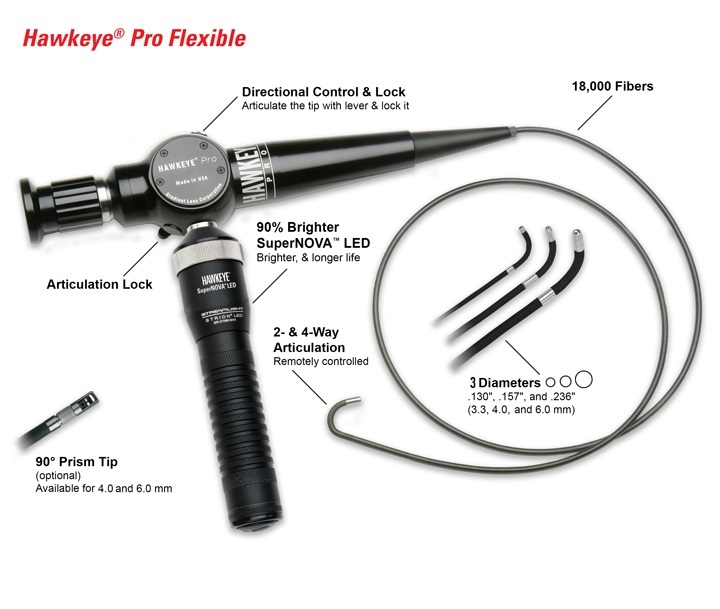

Pro Flexibles are offered in either 2-, or 4-way articulation! Control the direction-of-view (DOV) of the tip over a 300° range (± 150°) using a thumb lever on the aluminum borescope body. The lever can also be locked to hold a particular view.

The Hawkeye Pro Flexible sets a new standard of excellence in quality, at a very reasonable price.

Hawkeye® Pro Flexible Specifications

Optics
Direction-of-View 3.3 mm and 4 mm - 0 deg. only; 6 mm - 0 deg with optional 90 deg adapters
Field-of-View All models - 45 deg. FOV
Depth-of-Field 3.3mm scope – 10 – 50mm
4.0 mm scope – 10 – 50 mm
6.0 mm scope – 10 – 50mm
Distal Focus Fixed focus lens set.
Mechanical
Tube Diameter PFB3 - 3.3 mm, PFB4 - 4.0 mm, PFB6 - 6.0 mm
Working Length 850 mm
Insertion Tube Bend Radius PFB3 – 1.25”
PFB4 – 1.25”
PFB6 - 1.75”
Articulation PFB3, 2 way, +/- 130 deg., PFB4 2 way, +/- 150 deg. PFB6-4 – 4 way
+/- 150 deg
Tube Construction Stainless Steel monocoil inside watertight PVC, covered with tungsten braid.
Environmental
Operating Temperature 0° to 170° F (-18° to 77° C).
Watertight Insertion Tube Up to 1 atm/1 bar (14.7psig); approx. 30ft water depth.
Note 1 The handpiece is splash proof only.

Download Specifications
