E-Series Video Borescopes

E-Series Video Borescopes

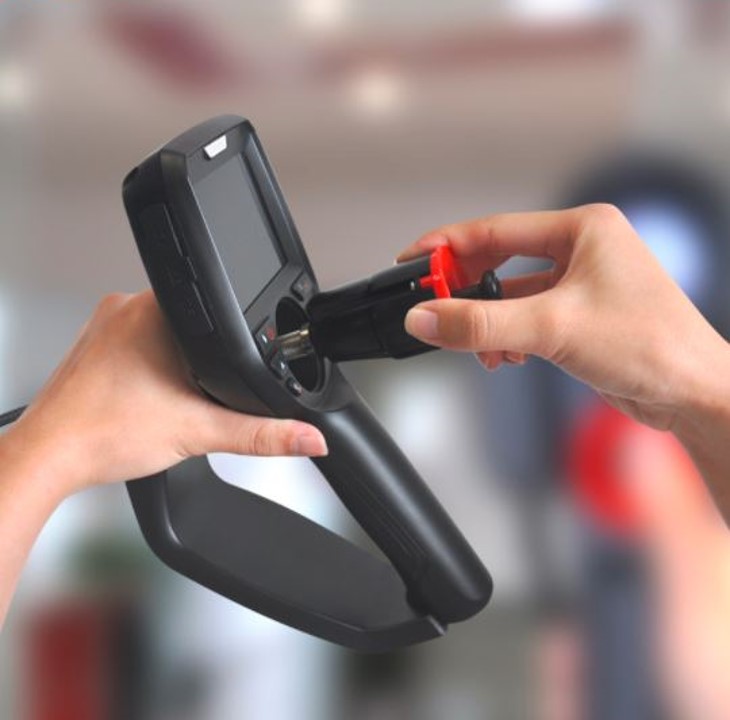

We are happy to introduce the E-Series Video Borescopes. With diameters of 2.0 and 2.8mm customers can transition from fiber-based solutions to modern-day video technology. The E-Series Video Borescopes offer 4-way joystick articulation, image and video capture, and 4 hour battery life combined with a compact and durable design. The E-Series design allows the end-user to easily remove the insertion tube, eliminating repair downtime.

Buy Now

E-Series Video Borescopes

Diameter Length Articulation Sheath DOV Model# Price

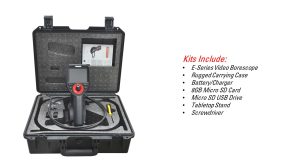

E-Series Video Borescope Kit
2mm 1m (3' 3") 4-way Tungsten VES 020 1000 4 $10,495 Buy Now
2mm 2m (6' 6") 4-way Tungsten VES 020 2000 4 $11,495 Buy Now
2mm 3m (9' 9") 4-way Tungsten VES 020 3000 4 $12,495 Buy Now
2mm 4.5m (14' 9") NA Tungsten VES 020 4500 NA $12,495 Buy Now
2.8mm 1m (3' 3") 4-way Tungsten VES 028 1000 4 $10,495 Buy Now
2.8mm 1m (3' 3") 4-Way Tungsten 90° VES 028 1009 4 $11,495 Buy Now
2.8mm 2m (6' 6") 4-way Tungsten VES 028 2000 4 $11,495 Buy Now

Download Pricing Table

Borescope, E-SERIES

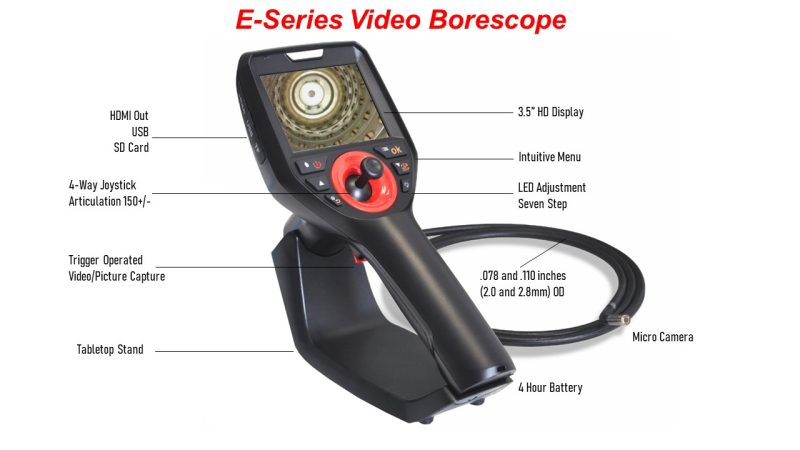

E-Series Video Borescopes

Gradient Lens E-Series Video Borescope features diameters of 2.0 and 2.8mm. The new small diameters allow our customers to transition from fiber-based solutions to modern-day video technology. The E-Series Video Borescopes offer 4-way joystick articulation, image and video capture, and 4 hour battery life combined with a compact and durable design. The E-Series design allows the end-user to easily remove the insertion tube, eliminating repair downtime.

Expanding on the popular Hawkeye V2 and V3, which were launched in 2012, the new E-Series incorporates significant technological advancements and fills out the offering of video borescopes offered by Gradient Lens Corporation.

The E-Series easily displays and captures crystal clear video and still images, and does so using a sleek, and compact design. The E-Series is a valuable tool for our customers needing to inspect small parts who couldn’t use video borescopes previously. The fully portable E-Series provides fast, accurate diagnostics, in mission-critical situations, without the need for costly, time-consuming maintenance teardowns.

E-Series Video Borescope Specifications

Diameter 2.0 and 2.8mm (.078 and .110" ) (+0.2mm, -0mm)
Lengths 2.0mm: 1m (39"), 2meter (78") and 3meter (117")
2.8mm: 1m (39") and 2meter (117")*
Articulation 1 - 3.0m length: +/-140° min. (+/- 10°)
Field-of-View 100° Diagonal +/- 10°
Depth-of-Field 3mm - 50mm
Direction-of-View
Sheath Tungsten Braid
Illumination Integrated White LED (Tip LED 2.0mm)
Display 3.5" HD Display
Camera 400 x 400 pixels
Interfaces HDMI, USB, SD Card
Power DC 4.2V
Battery 4 hr. run time, 3.7V, 3200mAh
Recording Media SD Card
Digital Photo Format JPEG/BMP
Video Format MPEG 4
Operating Temp. Range Probe: - 20 to +60C (-4 to +140 F),
Display Unit: -10to +50C (14 to +122F)
Storage Temp. Range - 20 to + 60 C (-4 to +140 F)
Weight 1.5 lbs
Environmental Sheath: IP67
Note * Longer lengths may be available. Please contact our sales team at 585-235-2620 for more information.

Download Specifications
